entire repair kit 1) Plastic Top Support 2) Spring 3) Plastic valve body (the smallest plastic part) 4) Stainless valve seat 5) O-ring seal

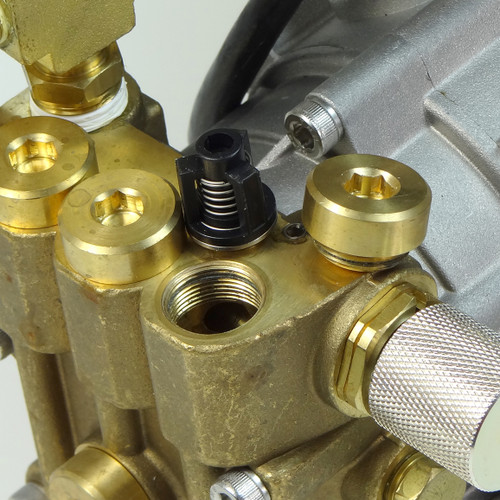

close-up of one valve assembly Replace valves when they stick or have debris in them, they pump will not build pressure. Each time the piston strokes back and forth, it pushes water through the pump head and opens and closes these valves to build pressure in the system. Please check to see that they are clean and moving freely up and down before re-installing them.
ring placements Brass Cap Not included
valve removal (8 mm Allen wrench) Brass Caps Not Included
Brass Cap Not Included

ProMist3 35 Pump Check Valve Kit for Misting Pumps (6 valves per pump)

$39.00
SKU:
F10-10-018

Product Description

Repair kit for misting pumps to replace all 6 NS1 check valve assemblies.

Warranty Information
