SuperDuty 59" Ground Fan w/ 1000 PSI pump and 8 Nozzle Ring Kit

Product Description

SuperDuty Ground Misting Fan – 43,000 CFM Cooling Power + High-Pressure Mist Package
The Ultimate Cooling System for Large Outdoor Events & Demanding Industrial Environments

When maximum airflow and misting performance are essential, the SuperDuty SD5VFF Ground Fan paired with the Mist-n-Go Plus 1000 PSI Pump Kit delivers unmatched results. Whether you're cooling sidelines, concert crowds, industrial sites, or event spaces, this system is built to handle it all—with customizable mist configurations and industrial-grade power.

SuperDuty SD5VFF Fan Highlights

• Airflow: Massive 43,000 CFM output for expansive coverage

• Motor: 1.5 HP Totally-Enclosed Fan-Cooled (TEFC) industrial motor with VFD speed controller (115V input standard)

• Mobility: Heavy-duty steel frame with 4 locking caster wheels—2 fixed, 2 swivel

• Control: Integrated variable speed control (VFD), easy to adjust

• OSHA Compliant Guards: Safe for public and workplace environments

• Heat Rating: Operates in ambient heat up to 135°F

• Noise Level: 43.4 dB @ 20 ft for quiet yet powerful performance

• Shroud Finish: Powder-coated red or HydroMist blue; custom colors available with 2-week lead time (+$200)

Blade Options (Same Price):

• Krupp Stainless Steel Blades: Wide, diffused air pattern—up to 60 ft coverage

• Red Composite Lineal Distance Blades: Narrow, high-velocity throw—up to 120 ft (slightly louder due to higher RPM)

Fan Specs:

• Fan Diameter: 59"

• Weight: 265 lbs

• Power Cord: 12', 3-prong, UL listed (16-gauge SJOOW)

• Drive System: Belt drive with Kevlar belt and cast motor pulley

• Shipping: Fully assembled, palletized—Flat rate: $350/fan

Mist-n-Go Plus 1000 PSI High-Pressure Pump Kit

Designed for seamless integration with the SD5VFF fan, this system includes a custom pump bracket and flexible misting components for tailored installations.

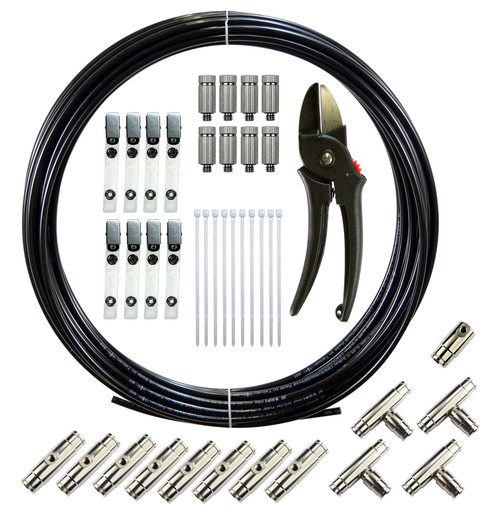

Misting Kit Includes:

• 1/3 HP pump motor (supports up to 16 nozzles)

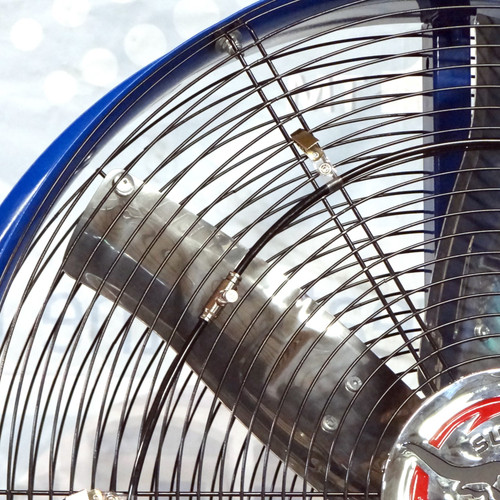

• 8-nozzle mist line with:

  • 25 ft of 1/4" high-pressure tubing

  • 3 Tees, 10 hose clips, 8 cable ties, and cutter

• Custom bracket mounts directly to fan base

• 1/4" compression hose fittings

• Expandable with additional tubing and fittings (sold separately)

Pump Features:

• Pressure: 1000 PSI

• Flow Rate: 0.18 GPM

• Power: 110V, 15 Amp

• Intermittent Mist Modes:

  • 15s ON / 20s OFF

  • 25s ON / 40s OFF

  • 40s ON / 40s OFF

• Auto Shut-Off: Activates when no water is detected

• LED Indicators

• Water Inlet: 3/4" brass female garden hose connection

• Splash Resistant Housing

Custom Misting Configurations

Use all 8 nozzles on one fan, or split between multiple fans (e.g., 4 nozzles per fan) for wider cooling coverage—all powered by one pump.

Ideal for
Concerts, Stadium Sidelines, Large Patios, Amusement Parks, Outdoor Venues, Industrial Work Zones, Agriculture Cooling
